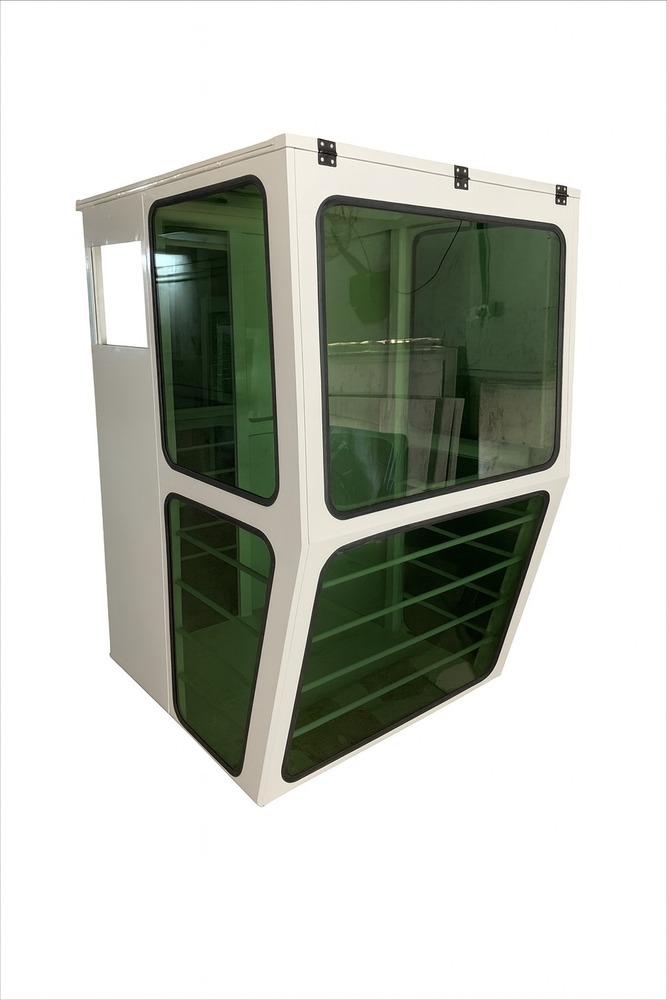

Tower Crane Cabin

Product Description

STEELFAB INDUSTRIES, Vasai manufacture the Tower Operator Cabin, which is an ergonomically engineered operator workspace designed to ensure maximum visibility, comfort and operational safety during crane operations. Positioned at an elevated point on the tower str structure, the cabin provides a panoramic view of the construction site, allowing precises and efficient lifting of heavy loads.

Built with high-strength steel framing and impact-resistant toughened glass, the cabin is designed to withstand harsh outdoor environments while ensuring operator protection. Integrated control systems, climate management, and safety features allow seamless operation of all crane functions, even during long working shifts.

📐 Key Specifications

1.Cabin Structure

• Material: High-strength steel frame with anti-corrosion coating
• Windows: Tempered laminated glass with UV protection
• Accessibility: Secure door with anti-slip steps or ladder access
• Mounting: Bolted saddle/stand on slewing platform

2.Operator Comfort

• Seat: Adjustable suspension operator seat (ergonomic design)
• Climate Control: Air-conditioning and heating available
• Noise Level: < 75 dB inside cabin (high-end models)
• Lighting: LED interior lighting
• Sunshade: Built-in sun visor or tinted glass

3.Control System

• Operating Controls: Joystick-based control for hoist, trolley & slewing
• Display Panel: Multi-function LCD/Touchscreen display
• Monitoring: Real-time load data, wind speed, hook height, radius indication
• Communication: Two-way intercom system with ground staff

4.Safety Systems

• Load Moment Indicator (LMI): Overload & radius monitoring
• Emergency Stop: Multiple emergency stop switches
• Black Box Recorder: Records operations and alarms (optional)
• Fire Extinguisher: Standard internal mount
• Backup Systems: Auxiliary power for descent and safety circuits

5.Electrical System

• Voltage: 24V DC internal system
• Wiring: Fire-resistant harnessing
• Protection: IP65 control panel enclosure

6.Dimensions (Typical Cabin)

• Length: 1.4 - 2.2 meters
• Width: 1.2 - 1.8 meters
• Height: 1.8 - 2.1 meters
• Weight: 350 - 600 kg (varies by model)
•


7.Compatibility

• Suitable for Hammerhead, Luffing, and Flat-top tower cranes
• Compatible with all major brands such as Anupam, Potain, Liebherr, Comansa, Yongmao, Zoomlion, etc.

Optional Advanced Features

• Live CCTV monitoring of hook and blind zones
• Anti-collision system integration (between cranes)
• Operator access card & digital authentication
• Touchscreen diagnostic system
